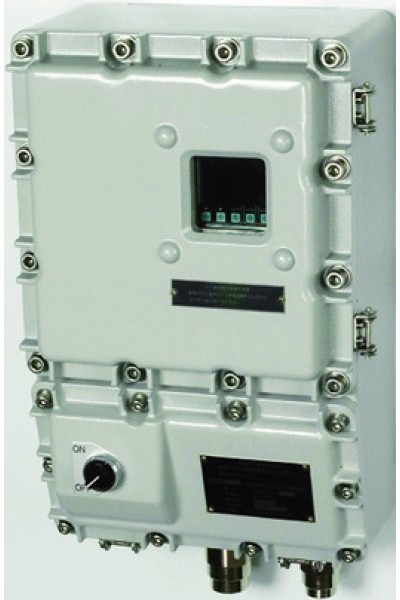

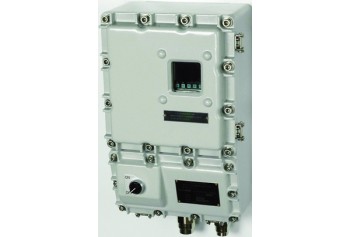

Gas Detector (URA-800 / Flame Proof Type)
Gas Detector (URA-800 / Flame Proof Type)
Product Code: URA-800
Availability: In Stock

Comment(s) / Special Request(s):

Add to Cart
Product Gas Detector (URA-800 / Flame Proof Type)
Model URA-800
Measuring Gas Combustible Gas
Detection Method Non-Dispersive Infared Ray (fluid modulation)
Sampling Method Suction type with a built-in sampling pump
Measuring Range 0~100%LEL
Indication Accuracy Within ±0.5% of full-scale
Response Time Response time in case of 62.5% indication: within 30 seconds (the piping must be within Φ6/4 10m)
External Output Gas concentration signal: DC4~20mA/full-scale, liner output

Trouble Signal: transmitted the above signal at 1mA

Power loss: the above signal is 0mA
Power Source AC100V +10%/-15% 50Hz/60Hz
Explosion-Proof Flame Proof Typw
Operating Temperature -10~40˚C; below 95%RH (non-condensing)
Detection Method 300(W) X 480(H) X 200(D) mm
Weight 30 Kg
