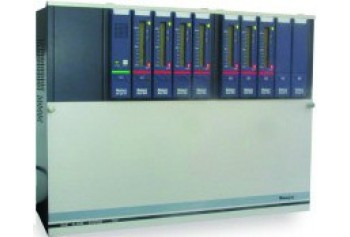

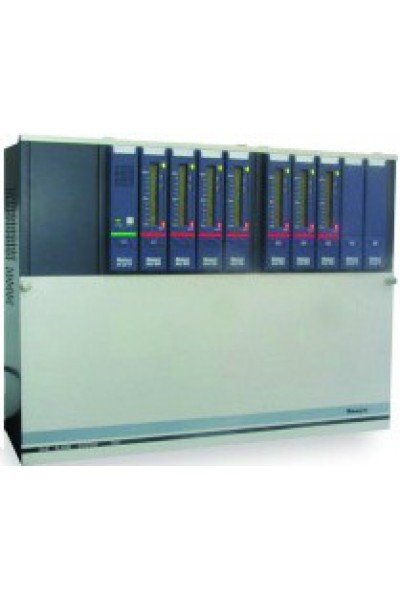

Indicator Alarm Unit (Multi-point)
Indicator Alarm Unit (Multi-point)
Product Code: -
Availability: In Stock

* KOMYO Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Indicator Alarm Unit (Multi-point)
Model KA-704R KA-708R
Measuring Gas Combination of Combustible gas ∙ Oxygen ∙ Toxic gases
Detection Method Refer to detection method of KU-7R Series
Measuring Range Refer to detection method of KU-7R Series
Concentration Display LCD bar with 51 segments and 4 figures LCD digital meter
Alarm Setting Value 2-step alarm, adjustable (15 steps), upper or lower limit available
Alarm Accuracy Refer to KU-7R Series
Alarm Display Intermittent red LED light and intermittent buzzer sound
Alarm Contact Output Individual 1a, delegate 1ab, rating AC100V, 0.5A (resistance load), DC30V ∙ 1A (resistance load)
Trouble Display Power lamp changes to intermittent red light from green, continuous buzzer sound
Analog Output DC4~20mA
Power Source AC100V, 50/60Hz
Operating Temperature -10~40˚C
Installation Method Wall Mount or panel mount
Detection Point Maximum 4 points Maximum 8 points
Dimensions 300(W) X 370(H) X 100(D) mm 500(W) X 370(H) X 100(D) mm
Weight 5.5 kg 10 kg
Additional Info -
