Multi-Point Alarm Meter (Multi-point)
Multi-Point Alarm Meter (Multi-point)
Product Code: -
Availability: In Stock

Comment(s) / Special Request(s):

Add to Cart

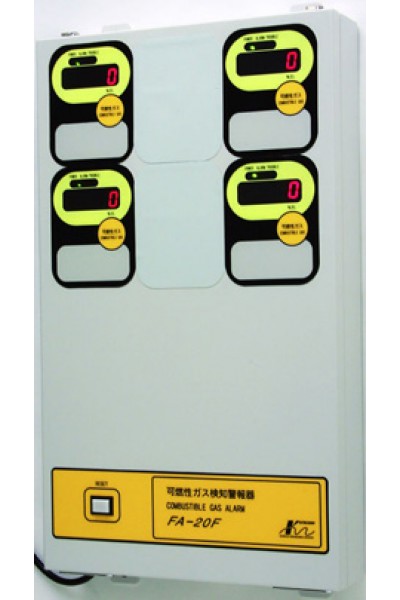

Product Multi-Point Alarm Meter (Multi-point)
Model FA-20F
Type Wall mount
Measuring Gas Combustible gas in the air
Detection Method Catalytic combustion or Heat wire semiconductor
Measuring Range 0~100%LEL 0~2,000ppm, 0~5.000ppm
Alarm Setting Value Adjustable (pre-setting; 25%LEL or 500ppm)
Alarm Accuracy Within ±25% against setting value
Alarm Display Intermittent red LED light and intermittent buzzer sound
Alarm Contact Output Individual gas alarm contact
One point each and one delegate trouble alarm contact
Non voltage 1a (standard) or 1b contact (option)
Contact Capacity AC125V, 0.6A (resistance load) or DC110V, 0.6A (resistance load) or DC30V, 2A (resistance load)
Trouble Display Intermittent yellow LED light and intermittent buzzer sound
Power Source AC100V±10% 50/60Hz
Operating Temperature -10~40˚C; below 95%RH (non-condensing)
Dimensions 300(W) X 510(H) X 70(D) mm
Weight 7.6 kg (6 points) including fittings
Additional Info -
