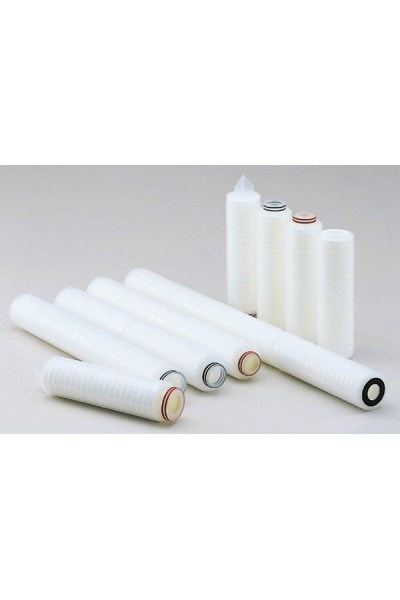

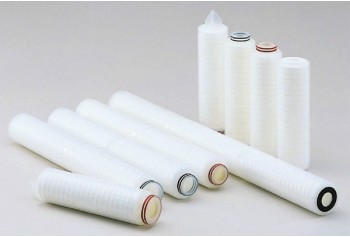

PTFE Membrane Cartridge Filter (TCF Type)
PTFE Membrane Cartridge Filter (TCF Type)
Product Code: TCF
Availability: In Stock

* CF Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product PTFE Membrane Cartridge Filter (TCF Type)
Model TCF-005 TCF-010 TCF-020 TCF-050 TCF-100 TCF-050L
Pore Size 0.05 µm 0.10 µm 0.20 µm 0.50 µm 1 µm 0.50 µm
Filtration Area 9200 cm² 7000 cm² 17,600 cm²
Max Differential Pressure (25°c) 0.39 MPa
Max Operating Temperature 80°c
Additional Info - Enhanced chemical resistance
- Selected types can be in-line steam sterilized (126 °c, 30 min) or autoclaved (121 °c, 30min)
Field Electronics and chemical manufacturing



Product PTFE Membrane Cartridge Filter (TCF Type)
Model TCF-020L
Pore Size 0.20 µm
Filtration Area 16,400 cm²
Max Differential Pressure (25°c) 0.25 MPa
Max Operating Temperature 40°c
Additional Info - Enhanced chemical resistance
- Selected types can be in-line steam sterilized (126 °c, 30 min) or autoclaved (121 °c, 30min)
Field Electronics and chemical manufacturing
