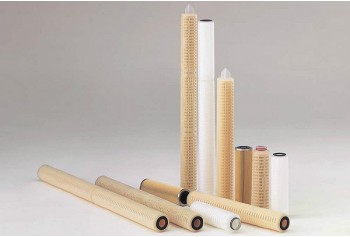

Epoxy Cellulose Filter Paper Pleats Cartridge Filter (TC Type)
Epoxy Cellulose Filter Paper Pleats Cartridge Filter (TC Type)
Product Code: TC
Availability: In Stock

* CF Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Epoxy Cellulose Filter Paper Pleats Cartridge Filter (TC Type)
Model TC-1 TC-3 TC-10 TC-30
Pore Size 1 µm 3 µm 10 µm 30 µm
Filtration Area 4000 cm²
Max Differential Pressure (25°c) 0.49 MPa
Max Operating Temperature 80°c
Additional Info - Cellulose fiber filter paper saturated by epoxy resin to minimize fiber release
- Available with standard polypropylene core or with stainless steel core (type 304, single length only) for high temperature applications
- TC-type are not autoclavable
Field Chemical and electronics



Product Epoxy Cellulose Filter Paper Pleats Cartridge Filter (TC Type)
Model TC-1-S4CB TC-3-S4CB TC-10-S4CB TC-30-S4CB
Pore Size 1 µm 3 µm 10 µm 30 µm
Filtration Area 3400 cm²
Max Differential Pressure (25°c) 0.49 MPa
Max Operating Temperature 150°c
Additional Info - Cellulose fiber filter paper saturated by epoxy resin to minimize fiber release
- Available with standard polypropylene core or with stainless steel core (type 304, single length only) for high temperature applications
- TC-type are not autoclavable
Field Chemical and electronics
