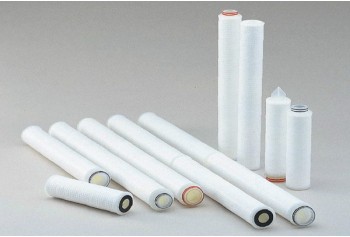

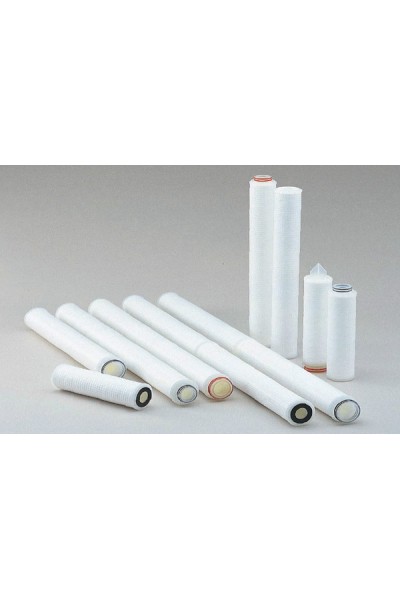

Multigrade Polypropylene Depth Cartridge Filter (TCPD Type)
Multigrade Polypropylene Depth Cartridge Filter (TCPD Type)
Product Code: TCPD
Availability: In Stock

* CF Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Multigrade Polypropylene Depth Cartridge Filter (TCPD Type)
Model TCPD-01A TCPD-02A TCPD-03A TCPD-05A TCPD-1
Pore Size 0.6/1 µm 1/2 µm 1/2/3 µm 2/3/5 µm 2/3/5 µm
Max Differential Pressure (25°c) 0.49 MPa
Max Operating Temperature 80°c
Additional Info - Spirally wound multigrade all-polypropylene construction
- Increasing depth retention gradient: as fluid flows through the cartridge, retention efficiency increases
Field Chemical and electronics



Product Multigrade Polypropylene Depth Cartridge Filter (TCPD Type)
Model TCPD-3 TCPD-7 TCPD-10 TCPD-30
Pore Size 3/5/10 µm 5/10/20 µm 10/20/30/40 µm 20/30/40/70 µm
Max Differential Pressure (25°c) 0.49 MPa
Max Operating Temperature 80°c
Additional Info - Spirally wound multigrade all-polypropylene construction
- Increasing depth retention gradient: as fluid flows through the cartridge, retention efficiency increases
Field Chemical and electronics
