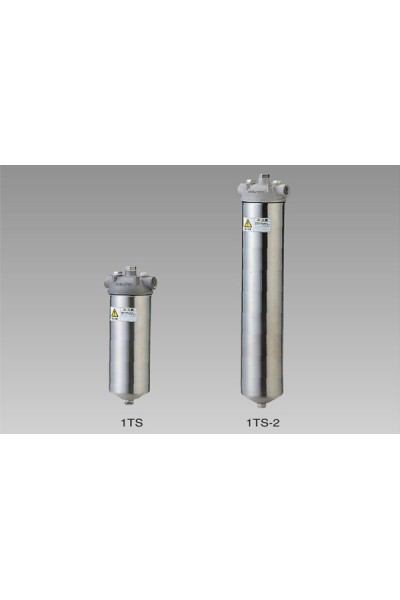

Stainless Steel Housing For Single Hold (1TS Type)
Stainless Steel Housing For Single Hold (1TS Type)
Product Code: 1TS
Availability: In Stock

* CFH Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Stainless Steel Housing For Single Hold (1TS Type)
Model 1TS 1TS-2 1TS-B 1TS-2B
Cartridge Capacity 250mm x 1 500mm x 1 250mm x 1 500mm x 1
Cartridge Compatibility Fixtures C, F and TCW
Inlet/Outlet ¾ “ PT 1” PT
Height:
Diameter		 366 mm
121 mm		 619 mm
121 mm		 369 mm
123 mm		 622 mm
123 mm
Max Operating Pressure 0.69 MPa
Material Main: SUS316 | Head: SCS14 | Gasket: FPM, PTFE
Weight 2 kg 4 kg 2.4 kg 4.4 kg
Additional Info - Stainless steel housing for 1pc cartridge filter, consisting of body and head with center post
- Easily perform cartridge filter replacement by loosening the cap nut and removing the housing head
- Choose from ¾” PT or ¼” PT inlet/outlet
- Designed for use with end fixture codes F, C and TCW
- Mounting accessories available
Field Food, medicine, cosmetic, chemical and electronics
