Stainless Steel Housing For Single Hold (1TM Type)
Stainless Steel Housing For Single Hold (1TM Type)
Product Code: 1TM
Availability: In Stock

* CFH Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Stainless Steel Housing For Single Hold (1TM Type)

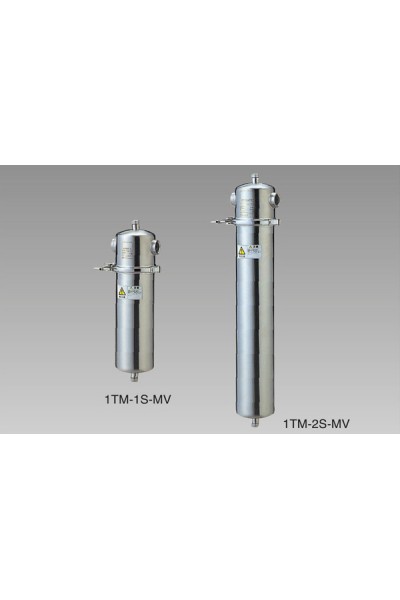

Model 1TM-1S-MV 1TM-2S-MV
Cartridge Capacity 250 mm x 1 500 mm x 1
Cartridge Compatibility Fixtures M, H, L
Inlet/Outlet 1” PT
Height:
Diameter		 451 mm
181 mm		 704 mm
181 mm
Max Operating Pressure 0.49 MPa
Material Main: SUS316 | O-ring: FPM
Weight 1.8 kg 2.2 kg
Additional Info - 2-part stainless steel housing for 1pc cartridge filter, consisting of body and head with clamp
- Easily perform cartridge filter replacement by loosening the sealing clamp and removing the housing head
- Few components allow for simple maintenance, and easy operation
- Lightweight housing can be cleaned by a washing machine
- Designed for use with end fixture codes M, H and L
Field Food, medicine, cosmetic, chemical and electronics
