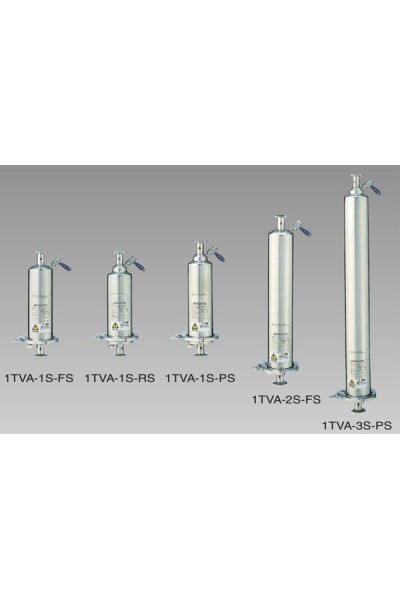

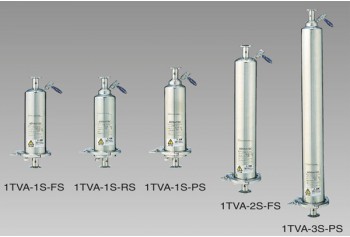

Stainless Steel Housing For Single Hold Sanitary (1TVA Type)

Product	Stainless Steel Housing For Single Hold Sanitary (1TVA Type)
Model	1TVA-1S-FS	1TVA-2S-FS	1TVA-3S-FS	1TVA-1S-MS	1TVA-2S-MS	1TVA-3S-MS
Cartridge Capacity	250 mm x 1	500 mm x 1	750 mm x 1	250 mm x 1	500 mm x 1	750 mm x 1
Cartridge Compatibility	Fixtures C, F and TCW (Flat Gasket DOE)			Fixtures M, H (O-ring SOE)
Inlet/Outlet	1S Sanitary Fitting
Height Diameter	408 mm 200 mm	658 mm 200 mm	908 mm 200 mm	392 mm 200 mm	642 mm 200 mm	892 mm 200 mm
Max Operating Pressure	0.49 MPa
Material	Main: SUS304 \| Gasket: Silicon \| Ball Valve: SUS316 \| Seal Gasket: PTFE
Weight	3.5 kg	5 kg	6.5 kg	3.2 kg	4.5 kg	6.1 kg
Additional Info	- Sanitary stainless steel housing for 1pc cartridge filter, with sanitary ferrule type inlet, outlet, and seal for easy inspection and cleaning removed for disassembly - Designed for use with end fixture codes F, C and TCW - 1TVA Type is compatible with applications that require vented housings
Field	Food, medicine, cosmetic, chemical and electronics

Product	Stainless Steel Housing For Single Hold Sanitary (1TVA Type)
Model	1TVA-1S-RS	1TVA-2S-RS	1TVA-3S-RS	1TVA-1S-PS	1TVA-2S-PS	1TVA-3S-PS
Cartridge Capacity	250 mm x 1	500 mm x 1	750 mm x 1	250 mm x 1	500 mm x 1	750mm x 1
Cartridge Compatibility	Fixtures R, K (220 O-ring, fin)			Fixtures P, J (226 O-ring SOE, fin)
Inlet/Outlet	1S Sanitary Fitting
Height Diameter	412 mm 200 mm	662 mm 200 mm	912 mm 200 mm	443 mm 200 mm	693 mm 200 mm	943 mm 200 mm
Max Operating Pressure	0.49 MPa
Material	Main: SUS304 \| Gasket: Silicon \| Ball Valve: SUS316 \| Seal Gasket: PTFE
Weight	3.3 kg	4.6 kg	6.2 kg	3.4 kg	4.9 kg	6.4 kg
Additional Info	- Sanitary stainless steel housing for 1pc cartridge filter, with sanitary ferrule type inlet, outlet, and seal for easy inspection and cleaning removed for disassembly - Designed for use with end fixture codes F, C and TCW - 1TVA Type is compatible with applications that require vented housings
Field	Food, medicine, cosmetic, chemical and electronics
