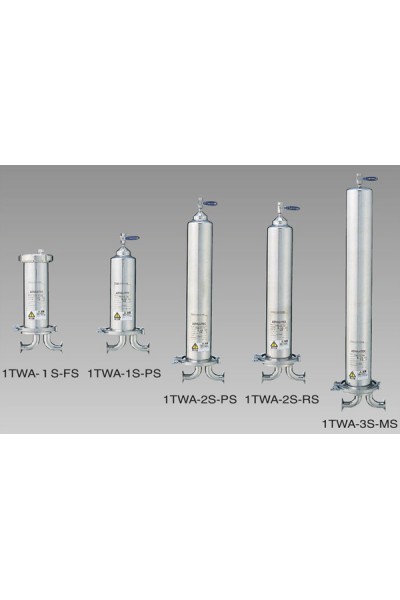

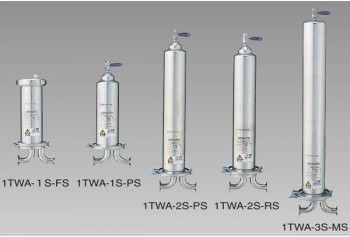

Stainless Steel Housing For Single Hold Sanitary (1TWA Type)
Product Code: 1TWA
Availability: In Stock
| Product | Stainless Steel Housing For Single Hold Sanitary (1TWA Type) | |||||
| Model | 1TWA-1S-FS | 1TWA-2S-FS | 1TWA-3S-FS | 1TWA-1S-MS | 1TWA-2S-MS | 1TWA-3S-MS |
| Cartridge Capacity | 250 mm x 1 | 500 mm x 1 | 750 mm x 1 | 250 mm x 1 | 500 mm x 1 | 750 mm x 1 |
| Cartridge Compatibility | Fixtures C, F (Flat Gasket DOE) and TCW | Fixtures M, H (O-ring SOE) | ||||
| Inlet/Outlet | 1S Sanitary Fitting | |||||
|
Height Diameter |
412 mm 183 mm |
667 mm 183 mm |
917 mm 183 mm |
441 mm 183 mm |
691 mm 183 mm |
941 mm 183 mm |
| Max Operating Pressure | 0.49 MPa | |||||
| Material | Main: SUS304 | Gasket: Silicon | Ball Valve: SUS316 | |||||
| Weight (kg) | 5.4 | 6.9 | 9.2 | 3.7 | 5.1 | 6.5 |
| Additional Info |
- Sanitary stainless steel housing for 1pc cartridge filter, with sanitsary ferrule type inlet, outlet, and seal for easy inspection and cleaning - 4S-clamp wraps around body and base sections; 3½ S-nut seals the top plate and body - Designed for use with end fixture codes F, C and TCW - Inlet/outlet base of 1TWA Type allows unit to be placed on short, straight sections of piping |
|||||
| Field | Food, medicine, cosmetic, chemical and electronics | |||||
| Product | Stainless Steel Housing For Single Hold Sanitary (1TWA Type) | |||||
| Model | 1TWA-1S-RS | 1TWA-2S-RS | 1TWA-3S-RS | 1TWA-1S-PS | 1TWA-2S-PS | 1TWA-3S-PS |
| Cartridge Capacity | 250 mm x 1 | 500 mm x 1 | 750 mm x 1 | 250 mm x 1 | 500 mm x 1 | 750 mm x 1 |
| Cartridge Compatibility | Fixtures R, K (220 O-ring, fin) | Fixtures P, J (226 O-ring SOE, fin) | ||||
| Inlet/Outlet | 1S Sanitary Fitting | |||||
|
Height Diameter |
476 mm 183 mm |
726 mm 183 mm |
976 mm 183 mm |
497 mm 183 mm |
747 mm 183 mm |
997 mm 183 mm |
| Max Operating Pressure | 0.49 MPa | |||||
| Material | Main: SUS304 | Gasket: Silicon | Ball Valve: SUS316 | |||||
| Weight | 3.7 kg | 5.1 kg | 6.6 kg | 3.7 kg | 5.1 kg | 6.6 kg |
| Additional Info |
- Sanitary stainless steel housing for 1pc cartridge filter, with sanitsary ferrule type inlet, outlet, and seal for easy inspection and cleaning - 4S-clamp wraps around body and base sections; 3½ S-nut seals the top plate and body - Designed for use with end fixture codes F, C and TCW - Inlet/outlet base of 1TWA Type allows unit to be placed on short, straight sections of piping |
|||||
| Field | Food, medicine, cosmetic, chemical and electronics | |||||
