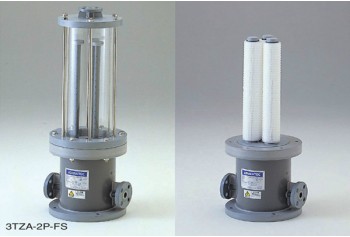

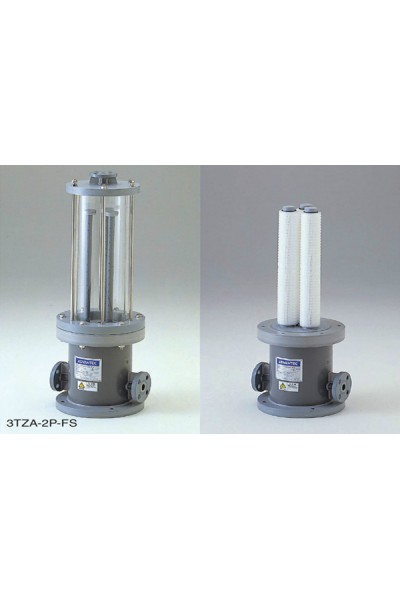

Acrylic Cartridge Housing For Multiple Hold (TZA Type)
Acrylic Cartridge Housing For Multiple Hold (TZA Type)
Product Code: TZA
Availability: In Stock

* CFH Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Acrylic Cartridge Housing For Multiple Hold (TZA Type)
Model 3TZA-1P-FS 3TZA-2P-FS 3TZA-3P-FS 6TZA-1P-FS 6TZA-2P-FS 6TZA-3P-FS
Cartridge Capacity 250 mm x 3 500 mm x 3 750 mm x 3 250 mm x 6 500 mm x 6 750 mm x 6
Cartridge Compatibility
(Fixtures)		 C, F (Flat Gasket DOE) and TCW
Inlet/Outlet JIS FF10K 25A JIS FF10K 40A
Height
Width		 760 mm
344 mm		 1010 mm
344 mm		 1260 mm
344 mm		 850 mm
472 mm		 1100 mm
472 mm		 1350 mm
472 mm
Max Operating Pressure 0.29 MPa (20°C), 0.19 MPa (40°C)
Material Connector (Trunk): Acrylic Resin, PVC | O-Ring: Silicone | Others SUS304
Weight 15.5 kg 17.5 kg 19.5 kg 40 kg 42.5 kg 45 kg
Additional Info -
Field Chemical and electronics
