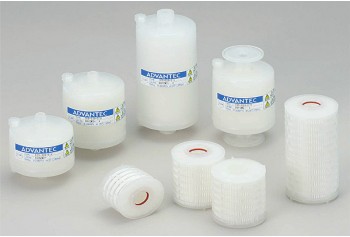

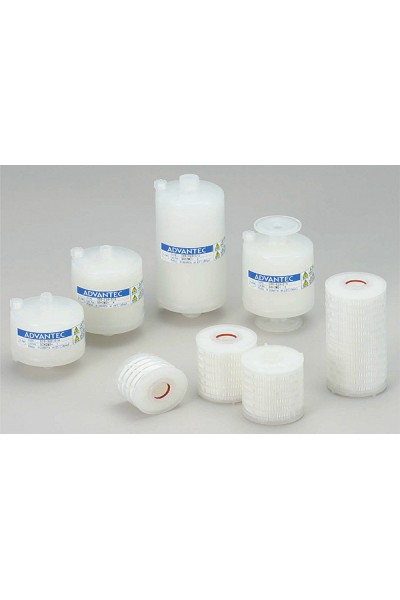

PES Membrane Compact Cartridge Filter (MCS Type)
PES Membrane Compact Cartridge Filter (MCS Type)
Product Code: MCS
Availability: In Stock

* CCFH Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product PES Membrane Compact Cartridge Filter (MCS Type)
Model MCS-020
C10S D10S E10S C10SR D10SR E10SR
Filtration Area 450 cm² 900 cm² 1800 cm² 450 cm² 900 cm² 1800 cm²
Pore Size 0.20 µm
LRV/Organism ≥ 7 B. Diminuta
Max Operating Pressure (25°c) 0.39 MPa
Max Operating Temperature 80°c
Bubble Point (water) ≥ 0.39
Material Filter: Polyethersulfone | O-Ring: Silicon | Others: Polypropylene
Dimension (mm) ⌀62 x 48 ⌀62 x 78 ⌀62 x 145 ⌀62 x 48 ⌀62 x 78 ⌀62 x 145
Additional Info -
Field Food, medicine, cosmetic and biotechnology



Product PES Membrane Compact Cartridge Filter (MCS Type)
Model MCS-045-
C10S D10S E10S C10SR D10SR E10SR
Filtration Area 450 cm² 900 cm² 1800 cm² 450 cm² 900 cm² 1800 cm²
Pore Size 0.45 µm
LRV/Organism ≥ 7 S. Marcescens
Max Operating Pressure (25°c) 0.39 MPa
Max Operating Temperature 80°c
Bubble Point (water) ≥ 0.29
Material Filter: Polyethersulfone | O-Ring: Silicon | Others: Polypropylene
Dimension (mm) ⌀62 x 48 ⌀62 x 78 ⌀62 x 145 ⌀62 x 48 ⌀62 x 78 ⌀62 x 145
Additional Info -
Field Food, medicine, cosmetic and biotechnology
