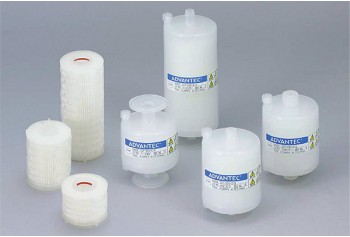

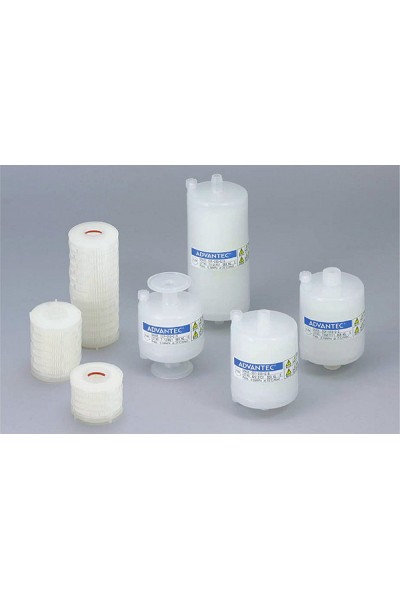

PTFE Membrane Compact Cartridge Filter (MCF Type)

Product	PTFE Membrane Compact Cartridge Filter (MCF Type)
Model	MCF-005-			MCF-A10-			MCF-010-
	C10S	D10S	E10S	C10S	D10S	E10S	C10S	D10S	E10S
Filtration Area (cm²)	450	1800	3600	450	1800	3600	570	1150	2300
Pore Size	0.05 µm			0.10 µm			0.10 µm
Max Operating Pressure (25°c)	0.39 MPa
Max Operating Temperature	80°c
Bubble Point (water)	≥ 0.16			≥ 0.15			≥ 0.13
Material	Filter: PTFE \| Support Media: Polypropylene \| O-ring: Silicone \| Others: Polypropylene
Type	Hydrophobic
Dimension (mm)	⌀62 x 48	⌀62 x 78	⌀62 x 145	⌀62 x 48	⌀62 x 78	⌀62 x 145	⌀62 x 48	⌀62 x 78	⌀62 x 145
Additional Info	-
Field	Food, chemical and electronics

Product	PTFE Membrane Compact Cartridge Filter (MCF Type)
Model	MCF-020-			MCF-050-			MCF-100-
	C10S	D10S	E10S	C10S	D10S	E10S	C10S	D10S	E10S
Filtration Area (cm²)	570	1150	2300	570	1150	2300	570	1150	2300
Pore Size	0.20 µm			0.50 µm			1.0 µm
Max Operating Pressure (25°c)	0.39 MPa
Max Operating Temperature	80°c
Bubble Point (water)	≥ 8.8 x 10-²			≥ 4.9 x 10-²			≥ 2.9 x 10-²
Material	Filter: PTFE \| Support Media: Polypropylene \| O-ring: Silicone \| Others: Polypropylene
Type	Hydrophobic
Dimension (mm)	⌀62 x 48	⌀62 x 78	⌀62 x 145	⌀62 x 48	⌀62 x 78	⌀62 x 145	⌀62 x 48	⌀62 x 78	⌀62 x 145
Additional Info	-
Field	Food, chemical and electronics
