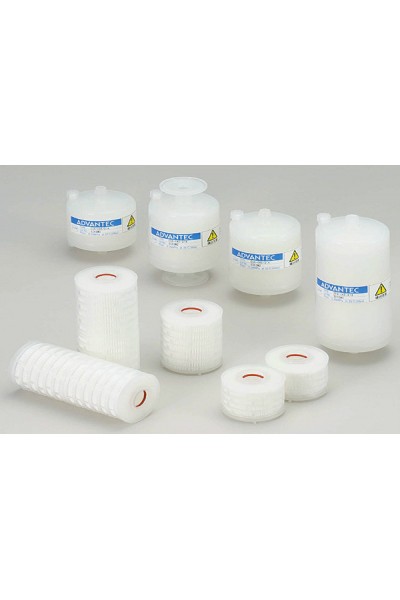

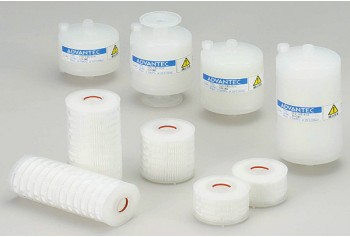

Glass Fiber Filter Pleats Capsule Cartridge Filter (CCG Type)
Glass Fiber Filter Pleats Capsule Cartridge Filter (CCG Type)
Product Code: CCG
Availability: In Stock

* CCFH Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Glass Fiber Filter Pleats Capsule Cartridge Filter (CCG Type)
Model CCG-045- CCG-1-
C10□ D10□ E10□ C10□ D10□ E10□
Filtration Area (cm²) 300 600 1200 300 600 1200
Pore Size 0.45 µm 1 µm
Max Operating Pressure (25°c) 0.29 MPa
Max Operating Temperature 60°c
Material Filter: Glass fiber | O-ring: Silicon | Others: Polypropylene
Dimension (mm) ⌀77 x
102		 ⌀77 x
129		 ⌀77 x
201		 ⌀77 x
102		 ⌀77 x
129		 ⌀77 x
201
Additional Info - Depth-type matrix of borosilicate glass fiber
- Large dirt holding capacity
- Resistant to most fluids except strong acids
- Contains a small amount of acrylic resin binder to enhance wet strength
- Can be sterilized by autoclaving (121°c, 30min) or treatment with ethylene oxide (EtO)
Field Chemical and electronics
