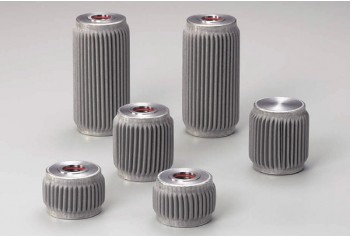

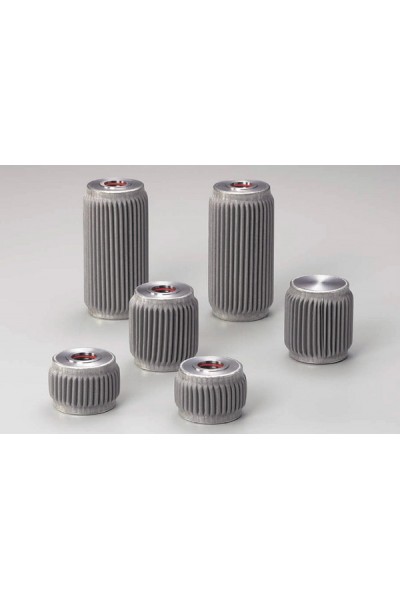

Stainless Steel Pleats Compact Cartridge Filter (MSP Type)
Stainless Steel Pleats Compact Cartridge Filter (MSP Type)
Product Code: MSP
Availability: In Stock

* CCFH Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Stainless Steel Pleats Compact Cartridge Filter (MSP Type)
Model MSP-3- MSP-5- MSP-10-
C10S D10S E10S C10S D10S E10S C10S D10S E10S
Filtration Area (cm²) 144 260 490 144 260 490 144 260 490
Pore Size 0.3 µm 0.5 µm 10 µm
Max Operating Pressure (25°c) 0.49 MPa
Material O-ring: Silicon | Others: SUS316
Dimension (mm) ⌀60 x
48		 ⌀60 x
78		 ⌀60 x
145		 ⌀60 x
48		 ⌀60 x
78		 ⌀60 x
145		 ⌀60 x
48		 ⌀60 x
78		 ⌀60 x
145
Additional Info -
Field Food and chemical



Product Stainless Steel Pleats Compact Cartridge Filter (MSP Type)
Model MSP-20- MSP-30- MSP-40-
C10S D10S E10S C10S D10S E10S C10S D10S E10S
Filtration Area (cm²) 144 260 490 144 260 490 144 260 490
Pore Size 20 µm 30 µm 40 µm
Max Operating Pressure (25°c) 0.49 MPa
Material O-ring: Silicon | Others: SUS316
Dimension (mm) ⌀60 x
48		 ⌀60 x
78		 ⌀60 x
145		 ⌀60 x
48		 ⌀60 x
78		 ⌀60 x
145		 ⌀60 x
48		 ⌀60 x
78		 ⌀60 x
145
Additional Info -
Field Food and chemical
