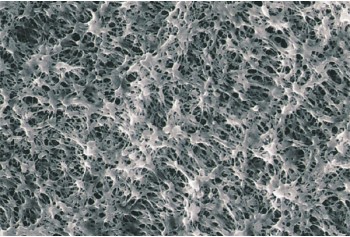

Hydrophilic PTFE Membrane Filter (PTFE Type)

Product Code: PTFE

Availability: In Stock

* MFDMU Model:		Qty:
	H100A013A (13mm - Box of 100)
	H100A025A (25mm - Box of 100)
	H100A047A (47mm - Box of 100)
	H100A090C (90mm - Box of 25)
	H100A142C (142mm - Box of 25)
	H100A293D (293mm - Box of 10)
	H050A013A (13mm - Box of 100)
	H050A025A (25mm - Box of 100)
	H050A047A (47mm - Box of 100)
	H050A090C (90mm - Box of 25)
	H050A142C (142mm - Box of 25)
	H050A293D (293mm - Box of 10)
	H020A013A (13mm - Box of 100)
	H020A025A (25mm - Box of 100)
	H020A047A (47mm - Box of 100)
	H020A090C (90mm - Box of 25)
	H020A142C (142mm - Box of 25)
	H020A293D (293mm - Box of 10)
	H010A013A (13mm - Box of 100)
	H010A025A (25mm - Box of 100)
	H010A047A (47mm - Box of 100)
	H010A090C (90mm - Box of 25)
	H010A142C (142mm - Box of 25)
	H010A293D (293mm - Box of 10)

Comment(s) / Special Request(s):

Qty:

Add to Cart

Description

- Maximum chemical and pH resistance
- High flow rates with minimal aqueous extractables (<0.3 wt%)
- Optically clear when wet with water
- Non-supported
- Thermostable: can be used up to 100°C

Product	Hydrophilic PTFE Membrane Filter (PTFE Type)
Model	H100A-	H050A-	H020A-	H010A-
Pore Size	1 µm	0.50 µm	0.20 µm	0.10 µm
Porosity	83%	79%	71%
Mass (mg/cm²)	1.3	1.6	2.2
Thickiness	35 µm
Flowrate: Water (mL/min)	73	39	21	14
Bubble Point (MPa)	≥ 8.3 x 10-²	≥ 0.14	≥ 0.24	≥ 0.38
Field	Chemical, electronics and environment
