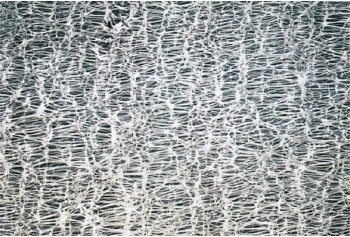

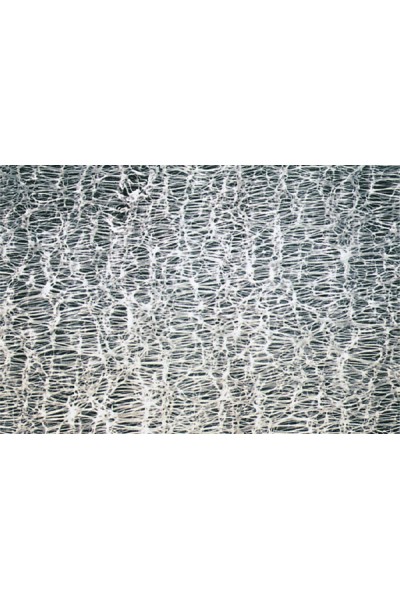

Hydrophobic PTFE Type Membrane Filter (PTFE Type)
Hydrophobic PTFE Type Membrane Filter (PTFE Type)
Product Code: PTFE
Availability: In Stock

* MFDMU Model: Qty:

Comment(s) / Special Request(s):

Add to Cart

- Thin, highly porous, behaves as an absolute retentive membrane
- Inert to most chemically aggressive solvents, strong acides and bases
- Autoclavable
- Operating Temperature Range: 120 ~ 260°C

Product Hydrophobic PTFE Type Membrane Filter (PTFE Type)
Model T300A- T100A- T080A- T050A- T020A- T010A-
Pore Size 3 µm 1 µm 0.8 µm 0.5 µm 0.2 µm 0.1 µm
Porosity 83% 79% 76% 78% 74% 68%
Thickness 75 µm 80 µm
Flowrate:
Acetone		 750mL/min 300mL/min 200mL/min 130mL/min 63mL/min 24mL/min
Bubble Point ≥ 1.3 x 10-² MPa ≥ 3.1 x 10-² MPa ≥ 3.9 x 10-² MPa ≥ 6.3 x 10-² MPa ≥ 9.1 x 10-² MPa ≥ 0.12 MPa
Field Food, chemical and electronics
