Hydrophobic PTFE with Supported PP Net Membrane Filter (PTFE Type)

Product Code: PTFE

Availability: In Stock

* MFDMU Model:		Qty:
	J100A013A (13mm - Box of 100)
	J100A025A (25mm - Box of 100)
	J100A047A (47mm - Box of 100)
	J100A090C (90mm - Box of 25)
	J100A142C (142mm - Box of 25)
	J100A293D (293mm - Box of 10)
	J050A013A (13mm - Box of 100)
	J050A025A (25mm - Box of 100)
	J050A047A (47mm - Box of 100)
	J050A090C (90mm - Box of 25)
	J050A142C (142mm - Box of 25)
	J050A293D (293mm - Box of 10)
	J020A13A (13mm - Box of 100)
	J020A25A (25mm - Box of 100)
	J020A47A (47mm - Box of 100)
	J020A90C (90mm - Box of 25)
	J020A142C (142mm - Box of 25)
	J020A293D (293mm - Box of 10)
	J010A013A (13mm - Box of 100)
	J010A025A (25mm - Box of 100)
	J010A047A (47mm - Box of 100)
	J010A090C (90mm - Box of 25)
	J010A142C (142mm - Box of 25)
	J010A293D (293mm - Box of 10)

Comment(s) / Special Request(s):

Qty:

Add to Cart

Description

- Thin, highly porous, behaves as an absolute retentive membrane

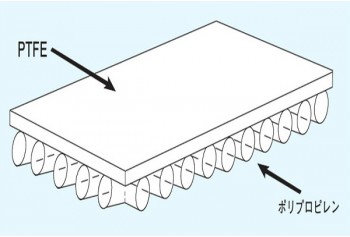

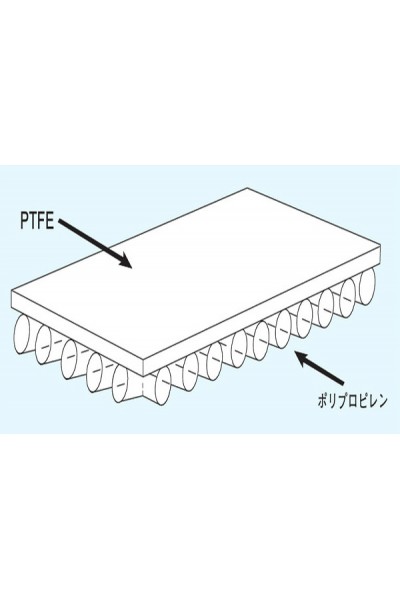

- Supported: polypropylene laminated to one side to improve handling
- Inert to most chemically aggressive solvents, strong acids and bases
- Thermostable: can be used up to 100°C
- Autoclavable

Product	Hydrophobic PTFE with Supported PP Net Membrane Filter (PTFE Type)
Model	J100A-	J050A-	J020A-	J010A-
Pore Size	1 µm	0.50 µm	0.20 µm	0.5 µm
Porosity	76%	74%	72%
Thickness	9 µm	120 µm	130 µm
Flowrate: Acetone (mL/min)	445	110	61.4	39.1
Bubble Point (MPa)	≥ 2.0 x 10-²	≥ 5.8 x 10-²	≥ 9.7 x 10-²	≥ 0.14
Field	Food, chemical and electronics
