47 mm Polysulfone Filter Holder
47 mm Polysulfone Filter Holder
47 mm Polysulfone Filter Holder 47 mm Polysulfone Filter Holder 47 mm Polysulfone Filter Holder 47 mm Polysulfone Filter Holder 47 mm Polysulfone Filter Holder
Product Code: -
Availability: In Stock

* MHV Model: Qty:

Comment(s) / Special Request(s):

Add to Cart

- Can be used aseptically
- Recessed filter support provides sufficient clearance so that the membrane will not twist or tear when the funnel is secured
- Graduated funnel in 300 mL (standard) or 500 mL (wide mouth) capacities

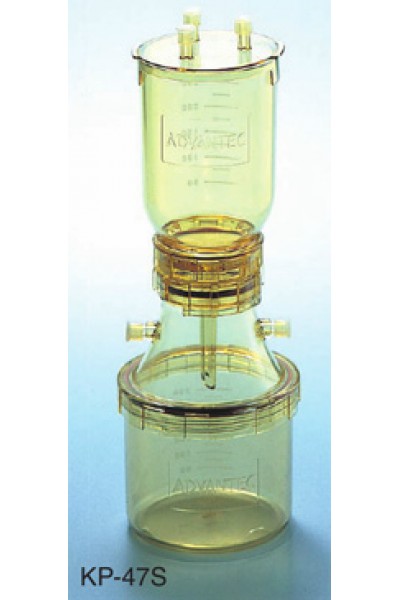

- Receiver flask (KP-47S) is interchangeable with all other models
- Funnel cover can be vented aseptically using disposable syringe filter (13JP050AN)

Product 47 mm Polysulfone Filter Holder

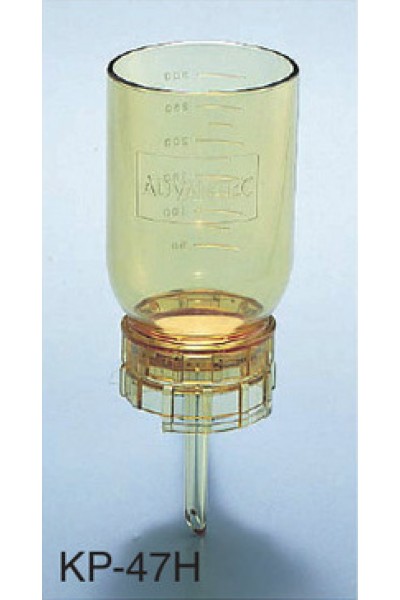

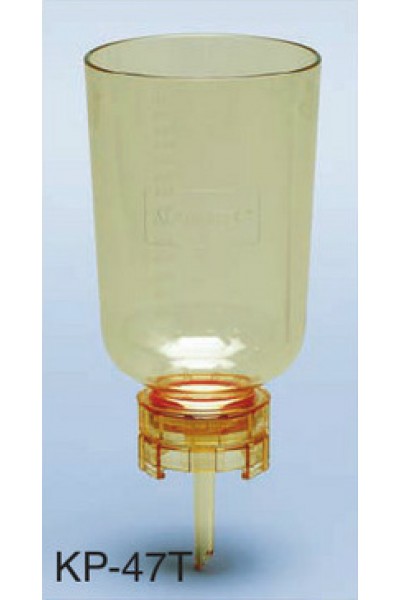

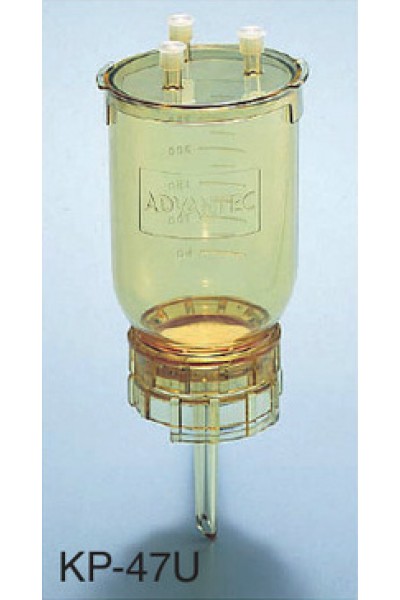

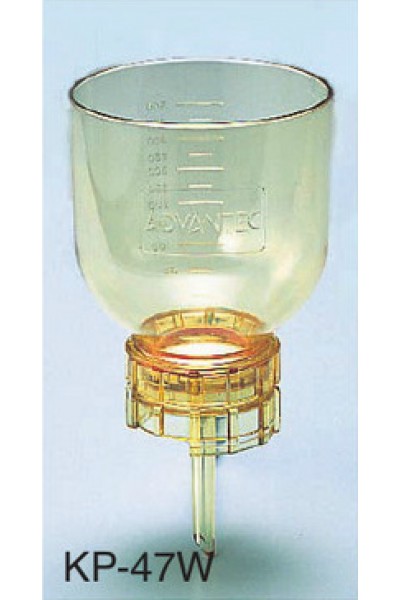

Model KP-47H KP-47U KP-47W KP-47S KP-47T
Filter Dimension ⌀47 mm
Prefilter Dimension ⌀41 mm
Filtration Area 13.5 cm²
Funnel Capacity 300 mL 500 mL 300 mL 800 mL
Receiver Capacity - 300 mL -
Dimension ⌀75 x 185 mm ⌀78 x 203 mm ⌀105 x 183 mm ⌀92 x 274 mm ⌀105 x 240 mm
Max Operating Temperature 80°C (Autoclaving possible at 121°C, 20mins)
Field Food, medicine and cosmetic
