Stainless Steel Gas Line Holder

Product Code: -

Availability: In Stock

* MHV Model:		Qty:

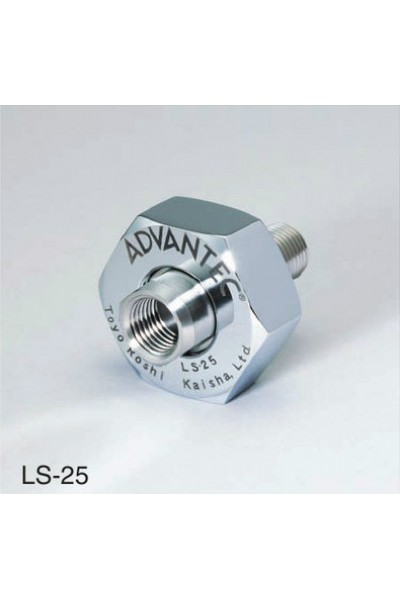

	LS-25

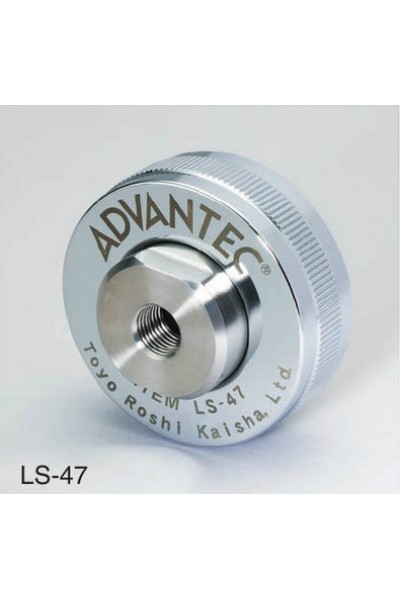

	LS-47

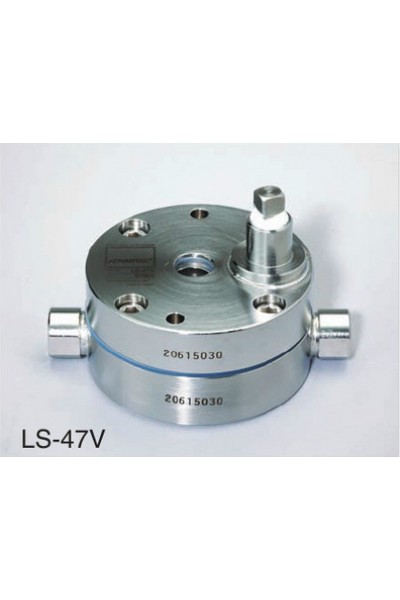

	LS-47V

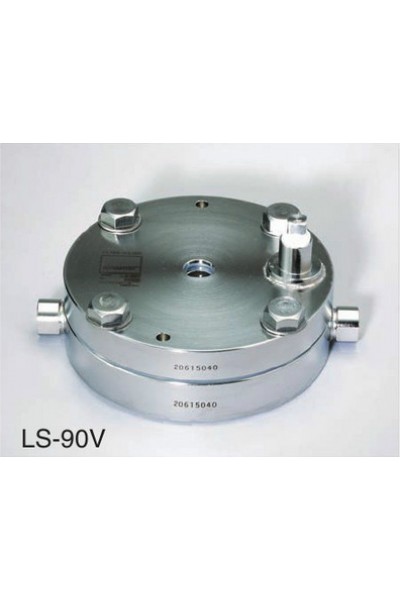

	LS-90V

Comment(s) / Special Request(s):

Qty:

Add to Cart

Description

- Female threaded locking ring enables filter changes without removing the holder from connecting gas lines
- Dual support screens protect the membrane filter from reverse pressure surges and allow forward and reverse flow from either inlet or outlet

Product	Stainless Steel Gas Line Holder
Model	LS-25	LS-47	LS-47V	LS-90V
Filter Dimension	⌀25 mm	⌀47 mm		⌀90 mm
Prefilter		⌀47 mm
Filtration Area	3.8 cm²	12.5 cm²		45.3 cm²
Max Operating Pressure	0.49 MPa		0.49 MPa
Max Differential Pressure	0.19 MPa		0.19 MPa
Material	Main (SUS304) \| Support Screen: SUS316 O-ring: Silicon (LS-47) \| Gasket: PTFE		Main (SUS304) \| Support Screen: SUS316 O-ring/Gasket: Silicon (Hardened Glass)
Inlet Outlet	¼” NPTF ¼” NPTM		¼” PTF
Weight	285 g	795 g	1000 g	4000 g
Field	Food, medicine, chemical, cosmetic and electronics
