Large Standard Stainless Steel Pressure Filter Holder
Large Standard Stainless Steel Pressure Filter Holder
Product Code: -
Availability: In Stock

* MHV Model: Qty:

Comment(s) / Special Request(s):

Add to Cart

- Seal membrane by hand, tightening and locking wing nuts
- Optimal holder design minimizes resistance and maximizes flow rate
- Each unit labeled with identifying serial numbers on the outside of both the inlet and outlet plates

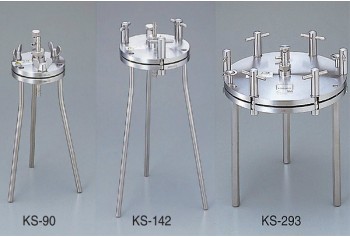

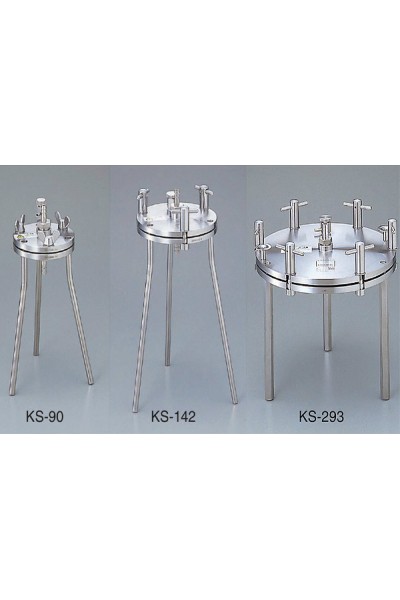

Product Large Standard Stainless Steel Pressure Filter Holder
Model KS-90 KS-142 KS-293
Filter Dimension ⌀90 mm ⌀142 mm ⌀293 mm
Prefilter ⌀76 mm ⌀124 mm ⌀257 mm
Filtration Area 45.3 cm² 113 cm² 530 cm²
Max Operating Pressure (25°C) 0.68 MPa
Max Differential Pressure 0.29 MPa
Inlet
Outlet		 Hose adapter Outer: 11mm
¾” PS		 Hose adapter Outer: 16mm
¾” PS
Material Main: SUS304 | Support Screen: PTFE coated photoetched stainess steel
O-ring: Silicone
Weight 4 kg 6 kg 19 kg
Field Food, medicine, cosmetic, chemical and electronics
