Large Sanitary Stainless Steel Pressure Filter Holder
Large Sanitary Stainless Steel Pressure Filter Holder
Product Code: -
Availability: In Stock

* MHV Model: Qty:

Comment(s) / Special Request(s):

Add to Cart

- Sanitary connections are threadless and can be completely disassembled for thorough cleaning
- Designed for minimal resistance and maximal flow
- Removable wing nuts (can be tightened by hand to seal membrane)
- Both inlet and outlet plates clearly marked with identifying serial number

Product Large Sanitary Stainless Steel Pressure Filter Holder

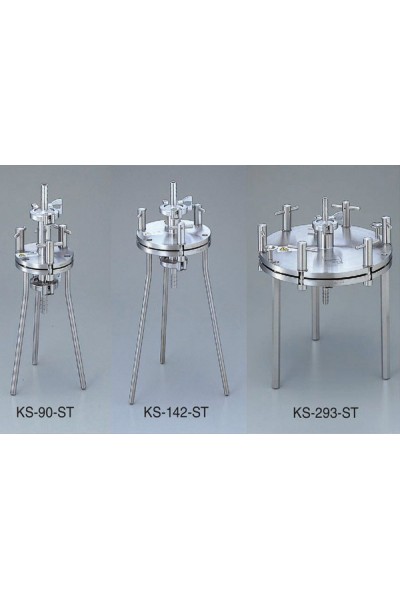

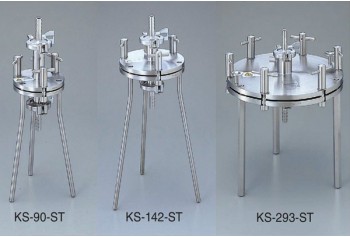

Model KS-90-ST KS-142-ST KS-293-ST
Filter Dimension ⌀90 mm ⌀142 mm ⌀293 mm
Prefilter ⌀76 mm ⌀124 mm ⌀257 mm
Filtration Area 45.3 cm² 113 cm² 530 cm²
Max Operating Pressure 0.68 MPa
Max Differential Pressure 0.29 MPa
Inlet
Outlet		 Hose adapter Outer: 16mm
1S Ferrule		 Hose adapter Outer: 16mm
1.5S Ferrule
Material Main: SUS304 | Support Screen: PTFE coated photoetched stainess steel
O-ring: Silicone
Weight 4 kg 6 kg 19 kg
Field Food, medicine, cosmetic, chemical and electronics
