Multi-Media Pressure Sealing Holder
Multi-Media Pressure Sealing Holder
Product Code: -
Availability: In Stock

* MHV Model: Qty:

Comment(s) / Special Request(s):

Add to Cart

- Dual sealing mechanism compresses the filter between the inside wall of the oulet plate and the O-ring on the outer edge
- Broad range of media thickness, including filter pads can be used

Product Multi-Media Pressure Sealing Holder

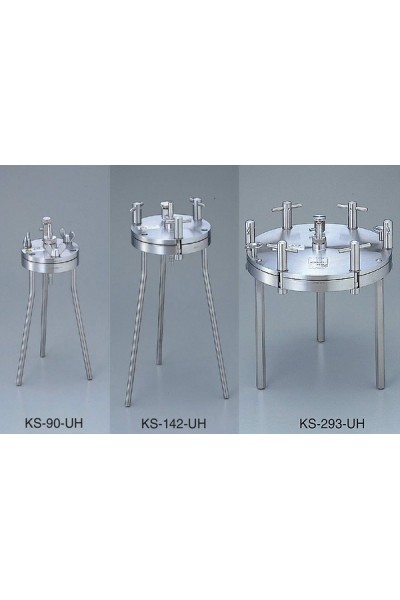

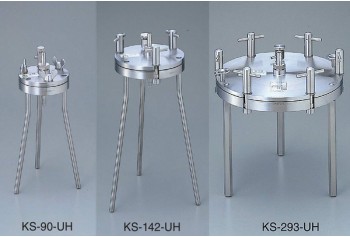

Model KS-90-UH KS-142-UH KS-293-UH
Filter Dimension ⌀90 mm ⌀142 mm ⌀293 mm
Prefilter ⌀76 mm ⌀124 mm ⌀257 mm
Filtration Area 45.3 cm² 113 cm² 530 cm²
Max Operating Pressure 0.68 MPa
Max Differential Pressure 0.29 MPa
Inlet/Outlet Hose adapter Outer: 11mm, ¾” PS Hose adapter Outer: 16mm
¾” PS
Material Main: SUS304 | Support Screen: PTFE coated photoetched stainess steel
O-ring: Silicone
Weight 4.5 kg 7 kg 21 kg
Field Food, medicine, cosmetic, chemical and electronics
