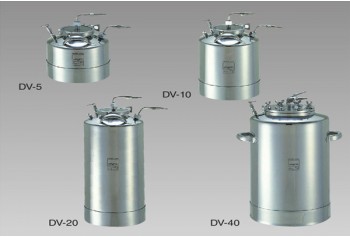

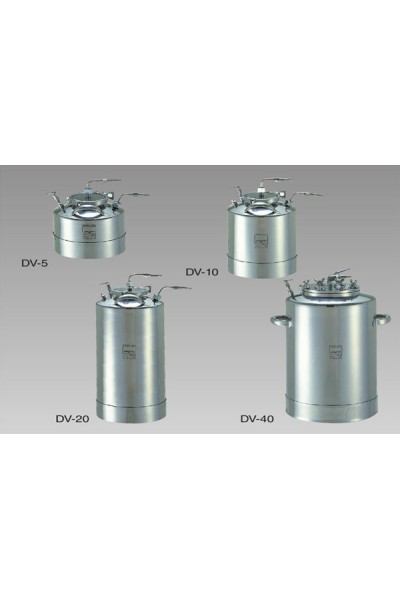

Standard Pressure Vessel (DV Series)
Standard Pressure Vessel (DV Series)
Product Code: -
Availability: In Stock

* MHV Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Standard Pressure Vessel (DV Series)
Model DV-5 DV-10 DV-20 DV-40
Tank Capacity 5 L 10 L 20 L 40 L
Height
Width		 298 mm
344 mm		 408 mm
344 mm		 637 mm
344 mm		 643 mm
459 mm
Opening ⌀94 mm ⌀150 mm
Max Operating Pressure 0.49 MPa 0.18 MPa
Safety Valve Pressure Setting 0.44 ± 0.04 0.15 ± 0.03
Inlet Hose adapter Outer: 7 x 10.5 x 13 mm, ¼” PS
Outlet Hose adapter Outer: 7 x 10.5 x 13 mm, ¼” PS Hose adapter Outer:
11 x 16 mm, ¼” PT
Material Main: SUS304, SUS316, Chrome Grill | O-ring/Gasket: PTFE/FPM
Weight 5 kg 6 kg 8 kg 19 kg
Additional Info -
Field Food, medicine, cosmetic, chemical and electronics
