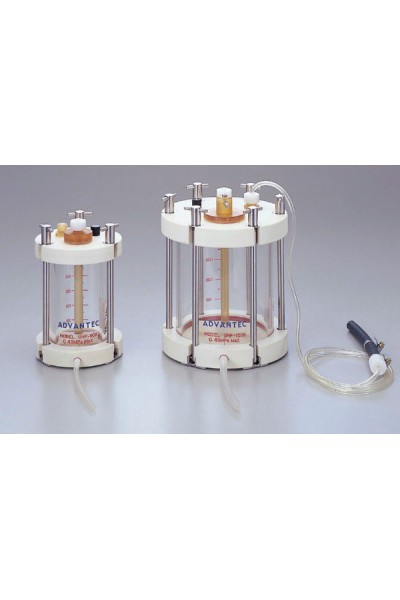

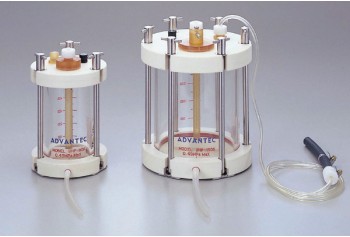

Large Ultrafilter Unit (by Stirring Force)
Large Ultrafilter Unit (by Stirring Force)
Product Code: -
Availability: In Stock

* UFH: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Large Ultrafilter Unit (by Stirring Force)
Model UHP-90K UHP-150K
Filter Dimension ⌀90 mm ⌀150 mm
Cell Capacity 600mL 2000mL
Smallest Concentration Capacity 15mL 60mL
Raffinate 0.6mL 1.6mL
Filtration Area 50.7cm² 159.6cm²
Revolution Count 0 rpm ~ 100 rpm
Max Operating Pressure 0.49 MPa
Safety Pressure Setting 0.39MPa ± 0.09 MPa
Material Cell: Acrylic
Top Plate/Base: Polysulfone
O-ring: Silicone
Others: SUS304, Polyacetal. FPM
Outflow Hose Adapter Diameter ⌀3 mm ⌀4 mm
Height
Width		 222
144		 263
215
Weight 1.8kg 3.9kg
Additional Info -
Field Food and biotechnology
