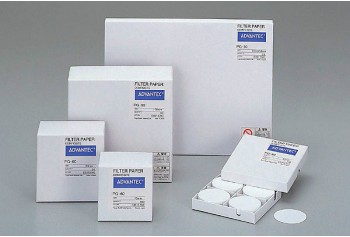

Composite Filter (PTFE Coated Glass Fiber)
Composite Filter (PTFE Coated Glass Fiber)
Product Code: PG-45
Availability: In Stock

* Packing (Box of 50): Qty:

* Packing (Box of 100): Qty:

Add to Cart
Product Composite Filter (PTFE Coated Glass Fiber)
Model PG-45
Mass 44 g/m²
Thickness 0.12 mm
Flow Time (s)
Pressure Loss 0.15 kPa
Water Resistance Level > 2.5 kPa
Binder Fluorine Resin
Max Operating Temperature 260°C
Dimension (⌀mm) 10 / 20 / 25 / 35 / 47 / 55 / 80 / 110
(Box of 10)
Additional Info - Creates a hydrophobic media with a very low moisture absorption capacity
- Excekkebt geat resistance, stable up to 260°C
- High degree of stability. The PTFE binder prevents absorption of acid gases such as SOx, NOx, etc
Field Environment
