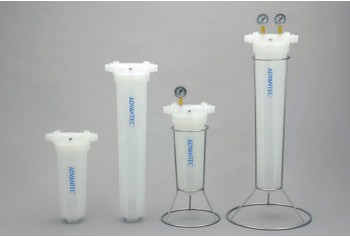

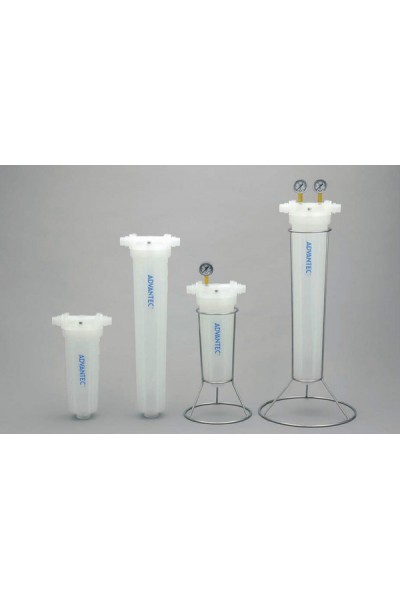

Polypropylene Housing For Single Hold (1PP Type)
Polypropylene Housing For Single Hold (1PP Type)
Product Code: 1PP
Availability: In Stock

* CFH Model: Qty:

Comment(s) / Special Request(s):

Add to Cart
Product Polypropylene Housing For Single Hold (1PP Type)
Model 1PP-1-FS 1PP-1-MS 1PP-2-FS 1PP-2-MS
Cartridge Capacity 250 mm x 1 500 mm x 1
Cartridge Compatibility
(Fixtures)		 C, F (Flat Gasket DOE) and TCW M, H (222 O-Ring SOE) C, F (Flat Gasket DOE) and TCW M, H (222 O-Ring SOE)
Inlet/Outlet ¾” PTF
Height
Width		 340 mm
200 mm		 594 mm
200 mm
Max Operating Pressure 0.49 MPa (25°C), 0.19 MPa (60°C)
Material Head: Polypropylene | Trunk: Polypropylene | O-Ring: Silicone
Bent: SUS304 | Draining Plug: Polypropylene
Adapter: Polypropylene | Adapter Spring: SUS304
¾” PT Nipple: Polypropylene
Weight 0.84 kg 0.79 kg 1.3 kg 1.25 kg
Additional Info - Polypropylene housing for 1pc cartridge filter with ¾” PTF (PT nipple) type inlet and outlet; high quality and economical
- Suitable for sanitary applications, such as parmaceutical or high purity water filtration; smooth inner walls of housing deter adhesion and accumulation of microbes and minute particles
- Designed for use with end fixture codes F, C and TCW
- Several accessories for mounting the unit are available
- Unit head available with push-button vent
Field Food, medicine, cosmetic, chemical and electronics
