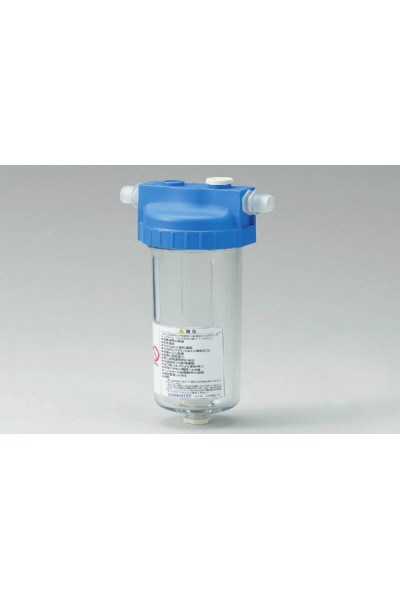

Acrylic Cartridge Housing For Single Hold (1PA Type)
Acrylic Cartridge Housing For Single Hold (1PA Type)
Product Code: 1PA
Availability: In Stock

Comment(s) / Special Request(s):

Add to Cart
Product Acrylic Cartridge Housing For Single Hold (1PA Type)
Model 1PA
Cartridge Capacity 250 mm x 1
Cartridge Compatibility
(Fixtures)		 C, F (Flat Gasket DOE) and TCW
Inlet/Outlet ¾” PTF
Height
Width		 345 mm
170 mm
Max Operating Pressure 0.5 MPa (38°C)
Material Head: Polypropylene | Trunk: Acrylic
O-Ring/Seal Ring: Silicone (NBR)
Others: Polypropylene
Weight 1 kg
Additional Info - Acrylic housing for a single cartridge filter with ¾” PF type inlet and outlet; high quality and economical
- Transparent housing permits observastion of filtration process
- Lightweight yet strong construction; can be assembled by hand
- Designed for use with end fixture codes F, C and TCW
Field Food, medicine, cosmetic, chemical and electronics
